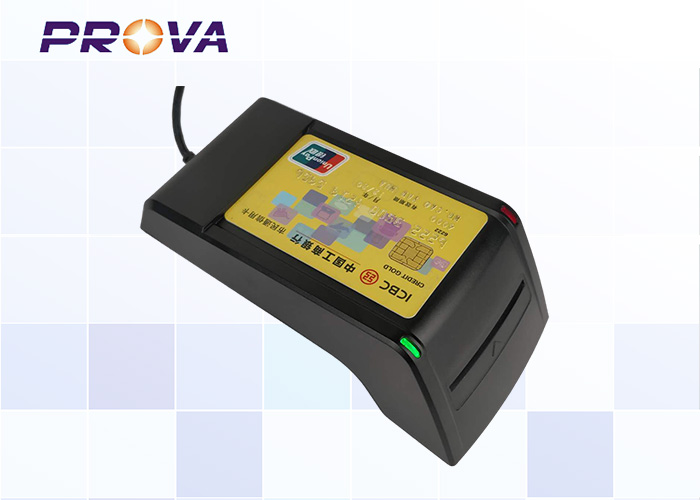

IC & RFID Chip Card Reader USB Interface With 500,000 Times Long
Life Time
Product Name: IC & RFID Card reader / Chip & Mifare Card Reader / Smart Card
Reader - F3200
Model: F3200
Features:
• USB 2.0 interface
• Built-in short circuit / overvoltage protection
• Read Wite CLASS A, B and C smart cards which compliant with ISO
7816-1/2/3 T=0 and T=1
• Data transfer speed for T=0 and T=1. baud rate is 13.440k ~ 625K
(5MHz-12MHz IC card frequency)
• UID (User ID) management
• Firmware encryption mechanism, anti-reverse analysis
• 255 bytes of flash memory for private data
• MTBF more than 500.000h
• Compliant with CCID standard, driverless for Windows. Linux.
macOS, UNIX
• PC/SC Compliant
Application:
* Access control terminal
* Supermarket payment
* Food transport
* Communication and transportation
* Home-banking
* Retail POS/Banking
* Electronic Commerce
* Identification/Payment
* Anti-fake/Library management
Specification:
| Power | USB |
| Power Consumption | Work current: Power Consumption Work current: <200 mA |
| Interface | RS232 or USB HID (PCSC) |
| Card Specification | Width: 53.92～54.18 mm
Length: 85.47～85.90mm
Thickness: 0.76mm ± 0.08 mm |
| Net Weight | Approx. 240g (Excluding accessory and package) |
| IC card standard | ISO7816 standard certified, EMV2000 Level1, PBOC3.0 (WITH
CERTIFICATE)
e.g.(AT24C01, 24C02, 24C256, SLE4447, SLE4428, CPU T=0/T=1) |
| RFID card standard | ISO14443-3 compliant (TYPE A: e.g. S50,S70,UL etc )
ISO14443-4 compliant(TYPE A CPU, TYPE B CPU e.g. Mifare plus,
MifareDesFire, etc) |
Working Status:
Advantage Of Chip Card Reader
1. Support 2D/1D barcode and support screen and paper barcode
2. 1GHz 32 bits CPU,high speed for data processing.
3. Temperature resistance can reach 105℃,long service life.
4. Small size, powerful and easy to integrate in industrial
equipment.
5. It supports 2nd development,multiple development language,also
SDK.
6. Highly cost-effective,highly sales volume.
7. We can offer the FFC flat cable for free and 12pin connector if
client needed.
