Name: Long-distance Two-dimensional Code Scanning Platform
Feature Of 2D Barcode Scanner
1. IR/Light Triggers
The combination of IR sensor and light sensor exhibits an improved
sensitivity in activating the scanner to scan barcodes as they are
presented, to achieve higher throughput and productivity.
2. Automatic Exposure Control (AEC)
The sensors in the LV3000U automatically adjust the brightness of
supplementary lighting based on the light reflected off barcode.
3. IP54-sealed Housing
The LV3000U is environmentally sealed to anIP54 rating to prevent
dust, moisture and other contaminant from entering it.
4. Unmatched Reading Performance
The LV3000U is capable of reading 1D as well as high-volume 2D
barcodes on the screencovered with protective film.
5. Highly Visible Laser Aimer
The LV3000U provides a laser-generated crosshair aiming pattern
that is clear and bright even in bright sunlight, ensuring first
time accurate aim.
6. 1.5m Drop Resistance
The scanner withstands multiple 1.5m drops toconcrete (for six
sides, three drops per side).
Model: BT-980
Introduction:

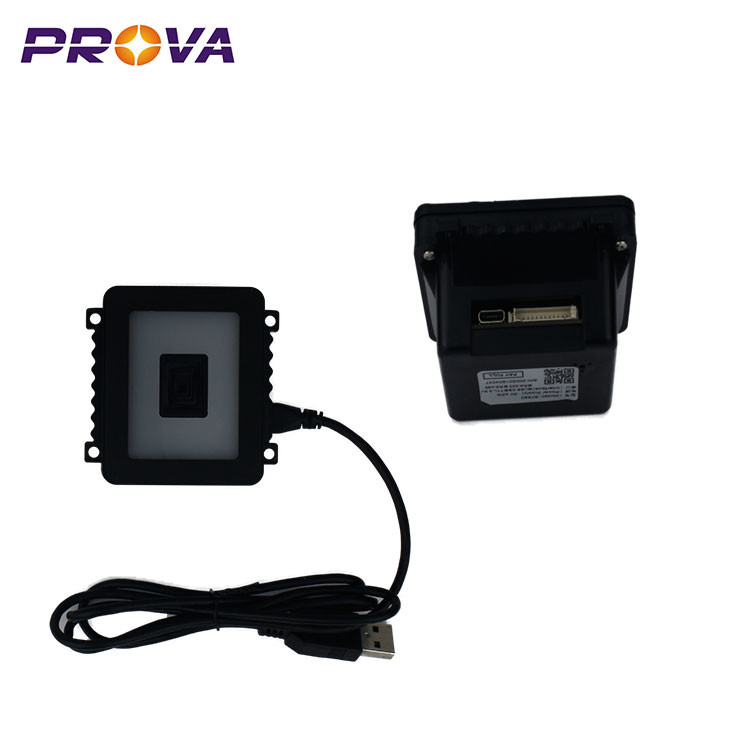

BT980 barcode scanning platform is a long-distance, strong light
immunity, high integration, fast response, high stability barcode
and two-dimensional code reading product, can read all kinds of
mainstream one-dimensional barcodes and mainstream two-dimensional
codes.
The BT980 has a long-distance scanning depth of field. Take the
mobile QR payment code as an example, it can identify the depth of
field: 10-120cm. The clever structure design and superb algorithm
make the product still have a good scanning experience in the
strong sunlight of 100,000 Lux, whether it is facing the sun
direction or the backlight direction. In parking lots and
high-speed toll applications, it is possible to support direct
scanning without shaking the car window under raining weather.
The BT980 scans paper barcodes when there is plenty of light.
Ultra-thin and compact product structure, the total thickness of
the product does not exceed 29mm, which can greatly adapt to the
extreme requirements of the user.
This product can be used in parking management, payment,
industrial, logistics management and other fields.
Features and advantages :
 | Light environment: excellent scanning code experience under strong
light and low light conditions, strong light intensity 100000 lux,
low light intensity 0 lux. |
 | Scanning code distance and speed: the payment code scan code
distance is up to 10-120cm in normal light illumination and angle,
and the scanning code speed response is fast, and the single
reading code is within 50ms. |
  | Environment adaptation: The recognition angle is wide, and the
user's hand-held mobile phone has a wide angle of deflection. The
rainy day and the window film can still scan the code without
shaking the window. |
  | Two-dimensional code carrier: support one-dimensional code,
two-dimensional code of mobile phone screen in complex environment,
support paper barcode and two-dimensional code. Bar code carrier: screen, paper, plastic, etc.(paper, plastic need
extra light)
|
 | Hardware structure: ultra-thin and compact product structure,
product thickness within 29mm range, with eye-catching three-color
light scanning code status reminder. |
Dimensional drawing:
Physical parameter:
Scan head volume (length x width x height): 64 mm × 65 mm × 28.9 mm
Weight: 41.4 g
Scanning performance:
Image sensor: 100W pixel CMOS
Scan recognition distance: 10-120 cm
Reading mode: hardware trigger / induction / continuous three modes
Reminder light: three-color status reminder light
Scan type: image type
Field of view angle: 36° horizontals, 23° vertical, 55° diagonal
Reading accuracy: 1D code ≥ 6mil QR code ≥ 15mil
(High-density barcode recognition has a short depth of field)
Decoding ability: Interpret standard one-dimensional,
two-dimensional barcode
Electrical parameters:
Input voltage: 3.0- 3.6 VDC, 3.8- 1 6 VDC
Working current: 232 mA (peak)
Standby power: 25mA
Host system interface: USB, TTL-232, RS232, RS485
Environmental parameters:
Working temperature: -20 ° C ~ 70 ° C
Storage temperature: -40 ° C ~ 80 ° C
Humidity: 5%~95%, no condensation
Ambient illumination: 0~100,000
