Product :

Manual Insert Card Reader for Kiosk Terminal , Support Chip Card/RF Card/Magnetic Card

Model: PT-288-K001-HEAY

Technical Specification:

Power

DC 5V±5% or USB

Power Consumption

Work current: <200 mA

Interface

RS232 or USB Interface (Automatically detect)

Card Specification

Width: 53.92～54.18 mm

Length: 85.47～85.90 mm

Thickness: 0.76mm ± 0.08 mm

Life time

Magnetic head 500,000 times Min

IC card contact carrier and contact: 300,000 times Min

Latch Mechanism: 500,000 times Min

Error Rate

Magnetic card:＜1/1,000 ( 15～25℃,35～60%RH, perfect and standard card )

IC card: ＜1/1,000,( 15～25℃,35～60%RH, perfect and standard card )

RFID card: ＜1/10,000,( 15～25℃,35～60%RH, perfect standard card )

Abnormal card

Allowance of card warp: 2mm max.

MTBF

＞1 X10⁵ hrs ( Electronic components only )

Note:250 times/day,25 days/month,300 hrs/month

Environment

Operation: 0℃-50℃, 0～90% RH ( non-condensing )

Storage: -25℃～80℃, 0～95% RH ( non-condensing ,dried before usage )

Normal environment:15～25℃,35～60%RH

IC card standard

ISO7816 standard certified, EMV2000 Level1, PBOC3.0

e.g.(AT24C01, 24C02, 24C256, SLE4447, SLE4428, CPU T=0/T=1)

Magnetic card standard

Physical characteristics: ISO7810 and 7811 standards compliant

Card dimensions:: SO ISO7810ID-1- type card compliant

Embossing: ISO7811-1, ISO7811-3 compliant

Recording format: ISO7811-2, ISO7811-4, ISO7811-5, ISO7811-6 complaints

RFID card standard

ISO14443-3 compliant (TYPE A:e.g. S50,S70,UL etc )

ISO14443-4 compliant(TYPE A CPU, TYPE B CPU e.g. Mifare plus, Mifare DesFire etc)

Maintenance

After long time usage, transportation mechanism would wear and tear, dust on sensor, magnetic head, IC card contact will influence the performance of module, so it should be maintained on a constant basis.

Detail instruction is as following:

• Use a cleaning card with alcohol to clean magnetic head by pulling and inserting in card reader for several times.
• Insert a cleaning card with alcohol and execute auto test IC card several times to clean IC card contact.
• Periodic maintenance: Maintaining the module (Magnetic head, IC contact, Mechanism) every 20,000 cycle is recommended.( One cycle: card in and card out )

Different components’ maintenance is as following:

1) IC card contact maintenance: Insert an IC card with alcohol; execute auto test IC card

2) Magnetic head maintenance: Insert/pulling a cleaning card with repetition.

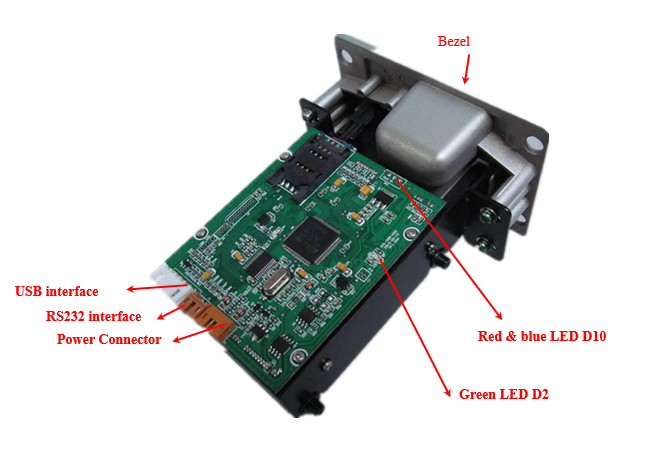

Picture:
