Product: Magnetic Card Reader & Encoder with Chip Card Module - F2600-IC USB interface

Model: F2600-IC

General Introduction:

F2600-IC is an ideal multifunctional reader designed for Banking System. It can encode and read data of stripe in the bank passbook and magnetic card. Obtaining read/write parity functions together. According to user requirement the device can integrate with IC card and SAM card module.

Specification:

● Voltage: +9V/DC±10% or +5V/DC±10%

● Current :≤300mA

● Sweep speed:10 ~ 100cm/s

● Head life:500,000 times

● IC card slot life(Main):200,000 times

● IC card slot life(Sub):100,000 times

● SAM card slot life:5,000 times

● Encoding standard:According to IBM,ISO,ANSI

● Encoding density:

Track1: 210BPI

Track2: 75BPI / 210BPI at optional

Track3: 210BPI

● Encoding characters:

Track 1: 210BPI Max length 76 bytes

Track 2: 75BPI Max length 37 bytes / 210BPI Max Length 104 bytes

Track 3: 210BPI Max length 104 bytes

● Environmental Requirement: Temp. 0℃～45℃, Humidity 10～90％RH

● Dimension(L*W*H, mm):215*64*65

● IC card module according to ISO7811/7816 Standard, Chinese financial IC card criterion (PBOC2.0) and EMV Standard

Application Of Chip Card Reader

* Access control terminal

* Supermarket payment

* Food transport

* Communication and transportation

* Home-banking

* Retail POS/Banking

* Electronic Commerce

* Identification/Payment

* Anti-fake/Library management

Appearance

A . MSRE slot B. Main IC card slot C. Sub IC card slot

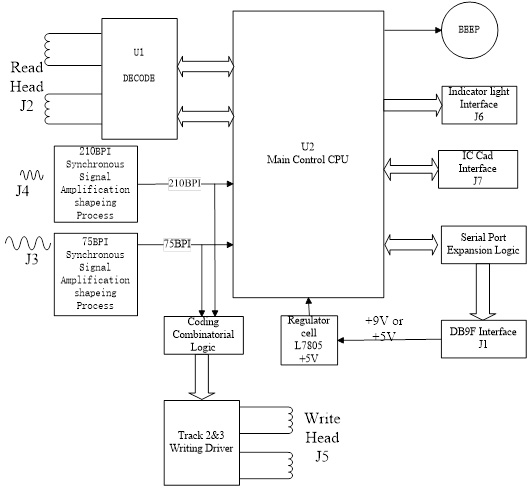

Framework of Working Principle

Shenzhen Prova Tech Co., Ltd. is a professional card reading equipment manufacturer and exporter, especially in POS hardware solutions and financial peripheral Devices.

Prova has excellent and experienced R&D team and marketing team which are the guarantee to provide our clients with superior products and services as well as OEM/ODM business.

Founded in 2011, today we have developed many financial and POS peripheral devices, and also cooperate with our partners with many perfect card related products and solutions. Such as IC card reader, RFID reader ,Magnetic card reader/writer, Card Issuing Machine, Check Reader, Desktop and Portable Printers, Smartphone Card Reader and POS terminals etc.

Prova's products have been widely used in financial banking systems, health care systems, transportation systems, parking systems, payment systems, access control and security application systems, etc. all over the world. We always adhere to the business principle of Quality First and Customer Foremost. We expect to cooperate with system integrators, trading companies, strategic partners and product distributors in world market.
