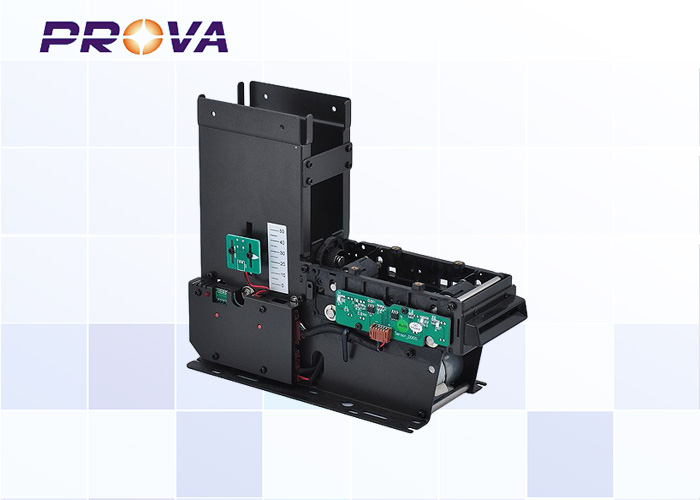

Product : Card Issuing Machine / Card Dispenser

Model: PT-F1

General Description:

PT-F1 series card dispenser is a high-performance card issuing device which primarily dispenses paper tickets and PVC cards to users according to instructions from HOST. It is primarily applicable to self-service terminals such as parking lot management system, expressway toll gate, self-service charging system, self-service card vending terminal, etc.

Product Main Features:
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses.
*Compact structure design: effectively saves space for the complete machine.
*Rear card capture box: provides convenience for card management.
*Simple collection channel design: satisfies user requirement for large collection amount.
*Multiple sensors: are able to judge the card position and indicate the card status.
*Scientific card transfer wheel design: automatically avoids dust accumulation which will lead to slippage.
*Multiple levels of sensor circuit protection: prevents optical interference.
*Supports multiple communications (max. 16 C/Ds).
*Supports online upgrade program.

Technical Specifications:
*Card Supported: 86L x 55W mm (0.2~1.2mm thickness; factory standard: 0.8mm)
*Power Supply: DC24V ± 5%, 2.5A
*Quiescent Current: 200mA
*Communication Method: RS232 (multiple communications supported, with default address 00)
*Service Life: ≥ 1, 000, 000 passes
*Card Stacker Capacity: 155 pcs (0.76mm standard card) /120 pcs (0.76mm embossing card) /300 pcs (0.4mm thickness)
*Capture Box Capacity: 25 pcs (0.76mm standard card)
*Net Weight: Approx. 1.6KG (excluding accessories and package)
*C/D Dimension: 236L x 100W x 200H mm/pc
*Carton Dimension: 515L x 295W x 310 mm/CTN (4 PCS)
*Operation Temperature/ Humidity: -10°C to 70°C, 0 to 90% RH without condensation
*Storage Temperature/ Humidity: -25°C to 80°C, 0 to 90% RH without condensation

Optional Accessories:
*Stacker (model no.: PT-S003)

RS-232 interface:

Sub Models:

PT-F1-1

PT-F1-2
