Product : Card Issuing Machine / Card Dispenser & Collector for Kiosk
Terminal

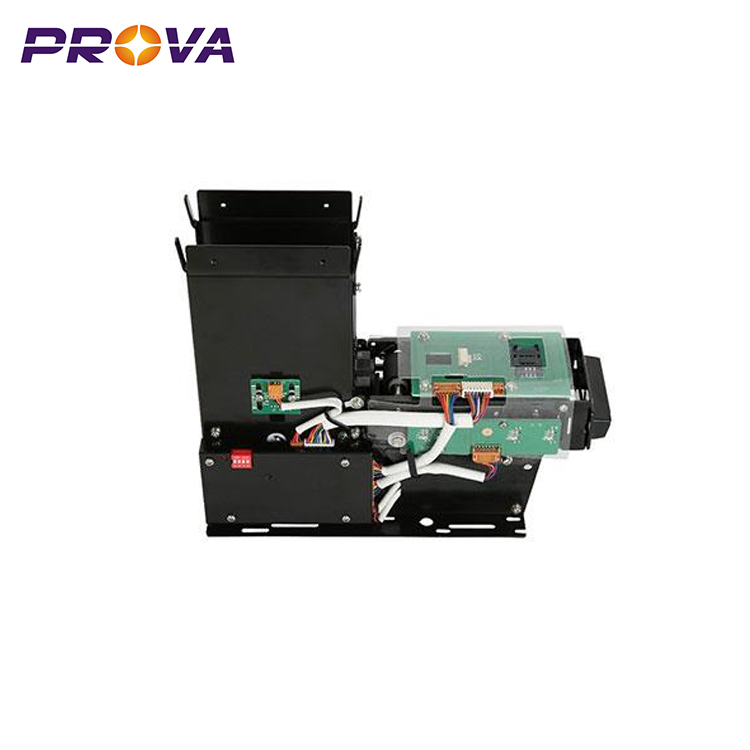

PT-591-M card dispenser for self service kiosk can be applied to
self service hotel,ticket-vending system,self service parking lot
etc. Full card stacker at 150pcs 0.76mm thinkness card, Built-in
ISO14443A standard 13.56MHz RFID reader/writer module.
Model: PT-591-MR01-EBNJ
1. Overview
This device is a card issuing machine with IC/RF card read/write
function,has the following features:
1) With the functions of card dispense, retract, accept from front,
prohibit from front.
2) Card-Empty, Pre-card empty detection with audible alarm.
3) Two method of retract card: Error card bin and path (By removing
the bars on the bottom)
4) RS-232C communication method,support multi-communication.
5) With RF/IC card read & write,one SIM socket,support SIM card
read & write；
6) One of the most compact card issuing machines with IC/RF card
module.
2. Technical Specification
| ITEM | Specification |
| Power Supply | DC 24V±5% |
| Current Consumption | Static current: 40mA Normal work current: 600mA Peak current: 2.0A |
| Communication Interface | RS-232C,support multi-communication |
| Card read&write Type | Serial port support IC &RF card Read & Write |
| Card Dimensions | Width:53.92～54.18 mm,Lenth:85.47～85.90 mm, Thickness:0.76±0.08mm(be
available for Braille card) |
| Weight | About 2.0 Kg(without accessories and package) |
| Set Dimension | Refer to structure and dimension drawings |
| Card loading | Max Stacker capability 150 pcs(0.76mm card)(Extend is available) Error card bin: Max capability 25±4pcs(0.76mm card) |
| Card pre-empty detect | 7-50±2pcs (Ex-work standard: 25±2pcs) |
| Environment | Operation: -10℃～60℃, 0～90 % RH ( Without Condensing) Storage: -25℃～80℃, 0～95 % RH ( Without Condensing) |
| MTBF | ≥100,000 hr(only electric parts), note:250
times/day,25days/month,300hr/month |
| IC Card standard | Compliant ISO7816 standard (AT24C01,24C02,……,24C256；SLE4442,SLE4428；CPU T=0/T=1) |
| RF Card standars | Compliant ISO14443-3(Mifare one:S50,S70,UL etc) Compliant ISO14443-4(TYPE A CPU: Mifare plus,Mifare desfire etc) Compliant ISO14443-3 TYPE B CPU |
| SIM Card standard | Compliant ISO7816 standard CPU Card T=0/T=1 |
| On-line download | Support On Line ISP Download |
| RoHS standard | Compliant RoHS standard |
3. Main Function:
| Faulty Ration in read & write | IC card:Card read&write 1,000 times, error is less than one
time (except Q card)(note:IC card is standard card) |
| Faulty ratio in dispensing | Dispense standard card 1,000 times,,error is less than 1 time
(note:standard card, except manipulating) |
| Dispense speed | About 14.8cm/s |
| Life cycle | IC contact and press device:500,000 cycles Min Transmission:1000,000 times Min(card from stacker to card holding
position or card error bin equal one time) |
4. RS232 Interface Definition:
5. Photoelectric Sensor Position to Locate Cards:
